ICRA Labelling System Specification

Target readership

This document is intended to be the definitive source of advice on labelling content using the ICRA system. Whilst every attempt has been made to present the information clearly, a large amount of detail is included, along with references to a variety of web technologies.

ICRA publishes shorter and simplified explanations for users with little or no experience of website creation, or those who don't need the level of detail provided here, on its support pages1.

PDF version (A4 format) 1.5 Mb
PDF version (US Letter format) 1.5 Mb

Version 1.0.3
January 2006

1 Introduction

ICRA exists to help users to find what they want, to trust what they find and to avoid content that they regard as inappropriate for themselves or their children. A vocabulary is provided that can be used to describe any and all digital content in a manner that reflects a broad range of parental concerns around the world2. The underlying system can, however, carry any kind of metadata for any purpose.

The descriptions are machine-understandable and may be used by a variety of agents such as filters, search engines and helper applications that display extra information for users.

ICRA labels are encoded in RDF3, one of the key technologies behind the Semantic Web4. This document does not set out the many advantages to content providers afforded by the semantic web except to note that features such as RSS, shared bookmarks, blogs and wikis are among its contributory elements.

Note: ICRA also offers a simplified PICS version of the label along with the Link tag in order to support legacy systems, notably Internet Explorer's Content Advisor. This is covered in a separate document.

1.1 Namespaces and documentation

The namespace of the RDF schema that provides the framework for ICRA labels is http://www.w3.org/2004/12/q/contentlabel# and the recommended QName is label. The relevant documentation is at http://www.w3.org/2004/12/q/doc/content-labels-schema.htm.

The namespace for the ICRA vocabulary is https://icra.org/rdfs/vocabularyv03# and the recommended QName is icra. The plain text version of the ICRA vocabulary and its supplementary definitions is at https://icra.org/vocabulary.

2 The key concepts

A Content Label is a description, i.e. a set of metadata, that can be applied to multiple resources. One or more labels are placed in a file and resources link to it either using an (X)HTML Link tag or an HTTP Response Header.

The file containing the labels is an RDF instance and is usually called labels.rdf. This is the name of the file created by the ICRA label generator (see section 2.3), although it is not significant and can be changed to anything.

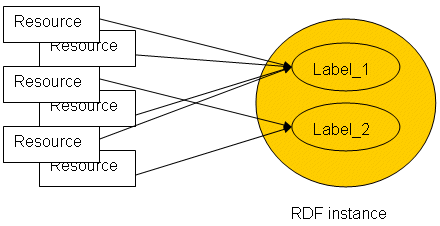

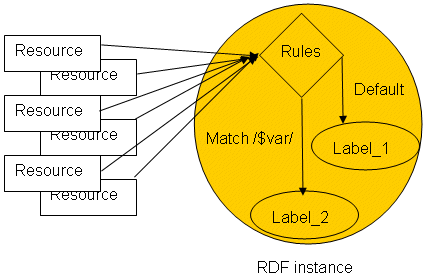

Resources may link to a specific label or may link to a data set that allows clients to match the resource's URI against a series of rules that resolve to give the correct label.

Content providers can thus choose whether the association of a resource with its label is undertaken client side or server side.

2.3 Creating the RDF instance

ICRA provides a tool on its website for creating the RDF instance and the necessary tags, known as the label generator5. It is designed to be used by those with little or no knowledge of web authoring techniques as well as more advanced users. The label generator builds the RDF instance based on the client-side processing model described above (section 2.2), although it is equally valid for the server-side model.

3 The content of the RDF instance

The RDF instance must define 1 or more labels. More specifically, it must define at least one instance of the RDF class Content Label as defined by http://www.w3.org/2004/12/q/contentlabel#ContentLabel.

NB. RDF Content Labels may contain statements from any RDF schema; however this document is concerned solely with ICRA's implementation.

The RDF instance can further define zero or more of the following:

  1. The host(s) for which the label(s) are applicable. Sub-domains are in scope.
  2. An additional string that must match the resource's URI for any labels in the RDF instance to be applicable.
  3. The default label.
  4. An ordered sequence of rules that should be matched against a resource's URI. If a rule is satisfied, it must provide a label that overrides any default.
  5. A description of the RDF instance itself that identifies where additional information about the label can be found, including how its veracity can be assessed.

These elements are explained in detail with reference to Example 5. Like all examples in this document and others produced by ICRA, the RDF is serialized in XML. However, this is not a requirement; other serializations, such as N36, are equally valid.

<?xml version="1.0"?>
  <rdf:Description rdf:about="">
    <dc:creator rdf:resource="https://icra.org" />
    <label:hasDefaultLabel rdf:resource="#label_1" />
    <label:rules rdf:parseType="Collection">
        <label:hasLabel rdf:resource="#label_2"/>
        <label:hasLabel rdf:resource="#label_3" />
  <label:ContentLabel rdf:ID="label_1">
    <rdfs:comment>Label for all/most of website</rdfs:comment>
    <rdfs:label>No nudity, no sexual content, no violence, no
     potentially offensive language, no potentially harmful
     activities, no user-generated content</rdfs:label>

  <label:ContentLabel rdf:ID="label_2">
    <rdfs:comment>Label for photography section</rdfs:comment>
    <rdfs:label>Exposed breasts, Bare buttocks, No sexual
    content, no violence, no potentially offensive language,
    no potentially harmful activities, no user-generated
    content, This material appears in an artistic
    <label:hasModifier><icra:xa /></label:hasModifier>

  <label:ContentLabel rdf:ID="label_3">
    <rdfs:comment>Label for guestbook and message board
    <rdfs:label>No nudity, no sexual content, no violence, no
    potentially offensive language, no potentially harmful
    activities, user-generated content


Example 5 An example RDF instance containing ICRA labels

3.1.1 Section 1

The namespaces are declared. The QNames label and icra are recommended for their respective namespaces.

3.1.2 Section 2

This short section declares that the labels were created by ICRA and that further information is available at icra.org. Since it is possible to include descriptions based on other schemas, this section specifies that icra.org only has information about the ICRA namespace.

3.1.3 Section 3

This section declares the hosts for which the data is valid. In this instance, we have declared that the labels can be applied to both example.org and example.com. Subdomains are covered, for example, www.example.org, sub.example.com etc.

This section also declares that the default Content Label for material on those hosts is "label_1" (see 3.1.5).

If labels are to be restricted to a particular area of the example.org and example.com hosts, this would be included thus:


Labels in this RDF instance would then only be in scope for resources with URIs on the example.org or example.com hosts that also contain 'foo.' This feature is included primarily for ISPs who offer personal web space with URLs like www.example.org/username. If more than one hasURI property is included, a URI is in scope if any one of them matches.

3.1.4 Section 4

The rules that determine where the default label should be overridden by another label are declared next. In this example, everything in the 'photography' section of both example.com and example.org will be associated with "label_2," everything with either the word guestbook or messages in the URL will be associated with "label_3." Otherwise, the default applies.

Matching is done using Perl 5 regular expressions7 so that if a rule should apply to "all URLs ending in .jpg" then this would appear as \.jpg$.

The use of rdf:parseType="Collection" ensures that rules are processed in order. The first rule to be satisfied is the one that is used, and processing stops at that point.

3.1.5 Section 5

Finally the labels themselves are defined. In the example, "label_2" declares that there are exposed breasts, bare buttocks, and that the material appears in an artistic context. "Label_3" declares that there is moderated user-generated content, and "label_1" states "none of the above" in all categories of the ICRA vocabulary.

4 Setting the MIME type

The correct MIME type for RDF instances is application/rdf+xml8. Your server may not support this by default9. If this is the case you'll need to do one of two things:

  1. Ideally, add the MIME type application/rdf+xml, usually associated with file extension .rdf.
  2. If you are unable to do this, try changing the name of the RDF instance to labels.xml. The XML MIME type (application/xml) is an acceptable alternative and is more widely included in default server configuration.
  3. Some servers may offer text/xml as a MIME type for files with the .xml extension. This is unlikely to cause problems for clients looking for ICRA labels but should not be used if you're including ICRA labels in a more sophisticated data set such as a database, or if the character set is not iso-8859-1 (Latin-1).

If none of these options is followed, your server may use a default MIME type such as text/plain. In this situation a client may or may not recognise the data as RDF and therefore may or may not process it correctly.

If you run IIS servers and are unsure how to add new MIME types, please see Section 5.3 below.

If your server is protected by a firewall, you may to need to configure this accordingly too.

5 Methods for inserting the tags

Having created the RDF instance, the next step is to insert the links to it. For a website to be considered fully labelled, links must be included on every (X)HTML page and ideally should be included in all resources.

The ability to shift label processing to the client rather than the server offers one crucial advantage: an identical link can be inserted on all resources. This is true whether the labels cover one small website or a global network of internet properties.

The most efficient way to do it is to configure the server(s) to include the link in the HTTP Response Headers. This also avoids accidentally deleting the tag (or omitting it) when pages are redesigned. Control of the labels is then firmly in the hands of the person (or department) responsible for managing the RDF instance. This may or may not be the same as those responsible for content creation. Alternatively, an (X)HTML Link tag (similar to Example 1 or Example 3 as appropriate) can simply be included in a document template or any other method you may use to include the same data in every page's <head> section.

5.1 Is it important to include the tag on every page?

Yes. When a user visits your site for the first time, their client will only detect the labels if a link is in place. If the link is only included in, say, the homepage, then users who enter the site via other routes will not benefit.

5.2 Apache server configuration

There is more than one way to control Apache's HTTP Response Headers. If you already set headers for other reasons, continue to use the same method. If not, the method given below is robust and will work.

5.2.1 Install Mod_Headers

Mod_Headers is not generally included in the default configuration but will almost certainly be included in your Apache installation and just needs to be "switched on" by removing the comment symbol before two lines in the httpd.conf file.

There are many different "flavours" of Apache, but what follows is likely to be at least close to what is required.

In the DSO section of the httpd.conf file look for

LoadModule headers_module     modules/mod_headers.so

In some builds, that's enough; others will also require the command below:

AddModule mod_headers.c

The comments in your config file and the presence (or absence) of similar commands for other modules will give you a good clue as to what to do.

5.2.2 Setting the same Response Header for all resources

Assuming that the RDF instance is called labels.rdf and is in the web server's document root, the following command, inserted in the httpd.conf file, will achieve the desired result.

Header set Link '</labels.rdf>; /="/"; rel="meta" type="application/rdf+xml"; title="ICRA labels";'

N.B. This command should appear all on one line.

5.2.3 Linking to specific labels with HTTP Response Headers

Like other Apache configuration options, HTTP Response Headers can be set within block directives. Example 6 sets the link to "label_2" for all resources in /var/www/images/.

<Directory /var/www/images/>
  Header add Link '</labels.rdf#label_2>; /="/";
  rel="meta" type="application/rdf+xml";
  title="ICRA labels";'

Example 6 A simple block directive setting a header for all resources in the images directory

As above, the Header add Link command should appear on a single line.

Block directives also offer very fine control over the HTTP Response Headers where required*. Example 7 sets a header pointing to "label_1" for all resources in the /var/www/ directory (and its subdirectories), but where the filename ends with .gif, .jpg, .jpeg or .png, the header linking to "label_2" is invoked.

<Directory /var/www/>
  Header add Link '</labels.rdf#label_1>; /="/";
  rel="meta" type="application/rdf+xml";'
  <Files ~ "\.(gif|jpe?g|png)$">
    Header unset Link
    Header add Link '</labels.rdf#label_2>; /="/";
    rel="meta" type="application/rdf+xml";'

Example 7 A nested block directive setting a different header for image files than for other files in the same block.

Notice in Example 7 that the link is unset within the file block directive. This is because where a resource is linked to a specific label, that label is given the highest priority and can't be overridden (see section 7). It is therefore an error to include more than one link to specific labels, and the expected behaviour of clients is not defined in these circumstances10.

* Some versions of Apache may not allow headers to be set in a Virtual Host block directive.

6 The Ruleset in Detail

Many content providers will need only a single label, or at most, a handful of labels for their site. The Ruleset, however, offers a great deal of flexibility and fine control over which label is associated with which resources. Three basic types of rule are available:

A simple rule that declares a single regular expression in a hasURI element that, if matched, identifies the correct label.

A rule that includes two or more regular expressions in hasURI elements that, if any of them match, identifies a correct label.

A rule that includes two or more regular expressions in hasURI elements that, if all of them match, identifies a correct label.

In Example 5, two rules are declared:

  <label:hasLabel rdf:resource="#label_2" />

Any resource whose URI includes the string "photography" (and is on one of the declared hosts) will be described by "label_2"

  <label:hasLabel rdf:resource="#label_3" />

If a URI does not match the first rule, a client will attempt to match it against "guestbook" and "messages." If a match is found (for either), then "label_3" applies.

It is possible to nest rules as shown in Example 8. "Label_2" would be applied if the URL contained both "colour" and "image" or both "monochrome" and "image." Note that hasLabel is a property of the "outer" rule.

  <label:hasLabel rdf:resource="#label_2"" />

Example 8 A nested rule

8 Processing ICRA labels

For a given resource (a page, an image etc.) there are three possible sources of a label:

As detailed below, filters SHOULD assign increasing priority to each of these sources.

8.1 Before retrieving the resource

Processing flow diagram before resource is retrieved

Figure 6 The processing to be carried out prior to any request to the internet.

If the filter already has a label for the requested URL in its cache then, immediately, a Type 1 label is available. If that label was initially retrieved from the same site as the URL we're interested in now, the label SHOULD be considered as a Type 2.

If the label data in cache was retrieved from a different website, it remains a Type 1 and the resource should be fetched and checked for further data.

For clarity:

There are several reasons for this, but they boil down to the idea that labels linked from a resource are "closer" to the content provider than labels that may have been published by someone with little or no connection with the described content. This is extended in the next section, when further priority is given to labels that are linked from the resource itself.

Type 1 labels should not be confused with third-party labelling. If a filter is configured to request labels from a third-party source, such as an online database or a content analyzer, the filter will handle that data separately. Type 2 labels take precedence over Type 1 labels purely in the context of self-labelling.

If there is no data in the filter's cache, the resource at the URL MUST be fetched.

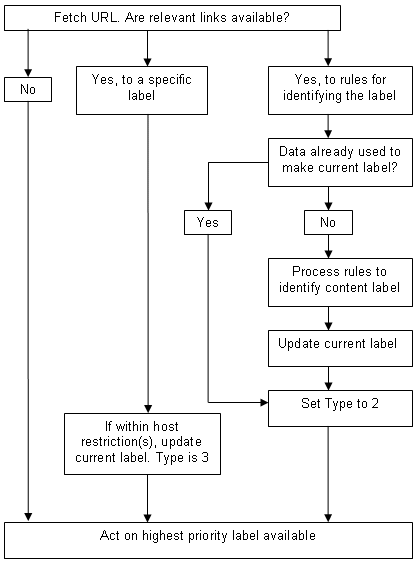

Processing flow diagram after resource is retrieved

Figure 7 The processing rules after the resource has been fetched.

8.2 Identifying the correct label

If the resource includes links to label data, it may be necessary to fetch and process it. (Remember that labels are always held separately, never actually within the resource itself.)

If the resource includes a link to a specific label, this is classed as a Type 3. Since this is the highest priority in the hierarchy, once a Type 3 label is available, no further processing is necessary to identify the correct label to use for this resource.

However, clients SHOULD check any host restrictions. Clearly a label should only be recognised as valid if the resource pointing to it is from the declared host(s). If no host restrictions are declared, a client MAY accept the label.

The priority given to Type 3 labels is the crucial step that allows a content provider to work with the notion of a default label with local overrides.

If the resource carries a link to the same resource that had already been processed to identify a Type 2 label, clearly no further processing is necessary; the correct label has already been identified.

However, if a link points to a different data source than had already been used to derive a Type 2 label, the new data SHOULD be processed. This is because it is possible to include any number of data files on a site, and it can be assumed that the one linked to from a given resource is the one the content provider intended to be used.

If no links are present in the resource, then clearly the only information available is that which was available before the resource was fetched.

If multiple labels of the same Type are available, this is an error on the part of the content provider. The filter MAY use any of them but, purely for reasons of efficiency, will normally simply use the first one found of a given type.

10 Working with other RDF schemas

An ICRA label and the Ruleset are simply RDF Classes whose types are defined by the relevant schema. These elements can all be included in any RDF instance and, conversely, any other RDF metadata can be included in "an ICRA labels file."

Indeed, content providers are encouraged to make use of other schemas.

10.1 Management information

Perhaps the best-known metadata schema that is regularly encoded in RDF is Dublin Core12. Along with Creative Commons13 licences and similar schemas, this can be included directly in content labels but can also be put in a special class for management information.

In exactly the same way as for Content Labels, the label schema defines the properties hasDefaultManagementInfo and hasManagementInfo. These link to RDF Content Labels that can include data such as title, author and publication date. Management Info labels exist independently of Content Labels linked by hasDefaultLabel and hasLabel properties labels, so it's possible to have a rule that overrides the default management information label without overriding the ICRA label.

10.2 Classification

Content Labels, whether they carry ICRA descriptors or any other metadata, are designed to include detailed descriptors. More formally, they are classes with properties that describe the resource. A third type of description is also defined in the label schema - a classification. Again there are analogous properties: hasDefaultClassification and hasClassification, but unlike a Content Label, a classification is designed to be a description in itself.

For example, the classification may be an age-based film rating or identify an article as being about "politics" as opposed to "fashion." Whatever the classification is, clients are not obliged to process any properties of a class linked by a hasClassification or hasDefaultClassification property.

Again, classifications exist independently so that overriding a default classification has no effect on either the management information or label.

11 Frequency modifiers

Movies, TV programmes, games and other content that "has a duration" may need more than one label. It may be appropriate to provide a label that describes a particular scene in a movie or a content type that occurs occasionally throughout a game. To support this, the Content Label schema supports a set of frequency modifiers:

  • has frequent scenes
  • has several scenes
  • has occasional scenes
  • has a single scene

A standard RDF description might appear as shown in Example 9. This can stand alone in the same way as any other RDF description, or form part of a sequence of rules in a label:Ruleset.

<rdf:Description rdf:about="http://example.org/movie.mov>
  <label:hasLabel rdf:resource= "#label_1" />
  <label:hasOccasionalScenes rdf:resource="#label_2" />
  <label:hasSingleScene rdf:resource="#label_3" />

Example 9 Description of a movie using frequency modifiers

Frequency modifiers have a range of label:ContentLabel. That is, they MUST link to a class of that type.

12 Some tips

12.1 It's just RDF

Content Labels, host restrictions, rules - these are all just RDF fragments. They do not need to all be in a single file called labels.rdf. If you're familiar with RDF, think of ICRA labels simply as part of your metadata.

12.2 Managing labels for multiple websites

If you create lots of websites that should have the same ICRA label, create a file with the label in it and make the Link tag that points to it part of your regular template. Remember that the labels do not have to be on the same server, they can be anywhere.

You do not need to include a host restriction at all - if a resource points to a label and there's no host restriction included in the RDF instance, the label is valid. On the downside, it means anyone can point to your label, which may put extra load on your server.

If you do want to include a host restriction it can be in a separate file all on its own. Example 10 shows how this can be done. The two fragments of RDF can be in the same file (as shown here) or in separate files on different servers. In this case you'd need to include a full URI (including the fragment identifier) as the rdf:resource.

  <label:hasHostRestrictions rdf:resource="#hosts" />

<label:Hosts rdf:ID="hosts">

Example 10 A Ruleset that links to an "external" list of host restrictions

This allows you to set up a stable file for the labels and then generate the host restriction list dynamically if desired.

12.3 A specific label for a specific page

Labels that apply to a single resource can be put in a separate file. You might set up a default labels file (with a Ruleset) and link everything to that and then create a completely separate label file for a particular page with a specific link to the label.

In short, work out what's best for you. It'll probably work in practice.

13 Testing the labels

The ICRA website includes an online tool that will identify the correct label for a given URL14.

14 Change log

Version 1.0.1: Added section on linking to icra.org/sitelabel (section 9). Subsequent sections renumbered.

Version 1.0.2 Amended documentation of hostRestriction to include hasHostRestrictions property and Hosts class.

Version 1.0.3 Added section referencing PICS labelling document.
